BTX1800 UPS/Stationary/Storage/E-bike Batteries Tester and Analyzer

BTX-1800 battery analyzer takes the advancing conductance measuring technology and DSP signal analyzing method, finish the battery testing in 2 seconds, especially development for Stationary batteries, and E-bike batteries application. The easy operation, no heating and no spark in testing are very popular with our customers.

Besides, it also supports both conductance and impedance test.

BTX-1800 battery analyzer surports "FAST TEST",  could identify 2V, 6V, 8V, or 12V batteries automatically, that could improve testing efficiency.

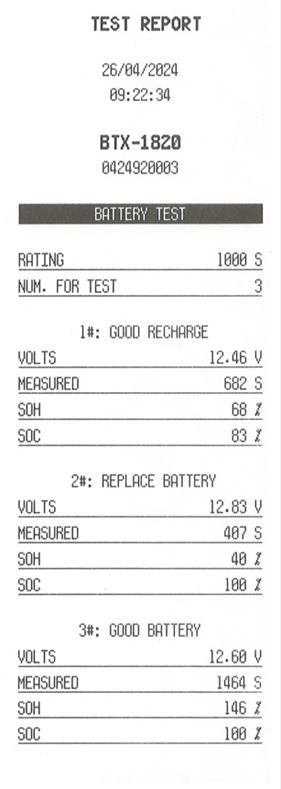

BTX-1800 battery analyzer could select external Bluetooth printer as an optional for test result printout.

BTX-1800 battery analyzer also supports SD card data saving and firmware update, that provides the possibility of data collection, management, and analyzing.

Optional housing colors: blue and orange

Technical Features:

·        Support rated 2V, 6V, 8V and 12V stationary batteries

·        Conductance measuring range: 100S ~ 15000S

·        Amp hours for battery: 5AH ~ 3000AH

·        Voltage measuring range: 1V ~ 30V

·        Support TF card data storage and firmware updating

·        Real time clock function help to review history data with date & time

·        Optional extern Bluetooth printer

·        Large screen display with back lights

·        Friendly operation interface and graphic displaying

Multi-Language Support:

English, German, French, Spanish, Dutch, Italian, Russian, Polish, Portuguese, Turkish, Japanese, Chinese

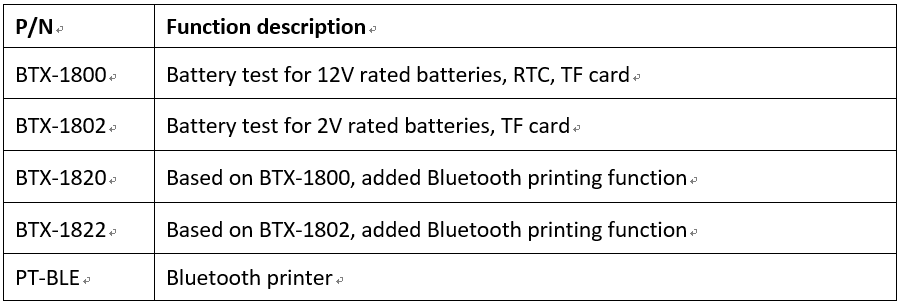

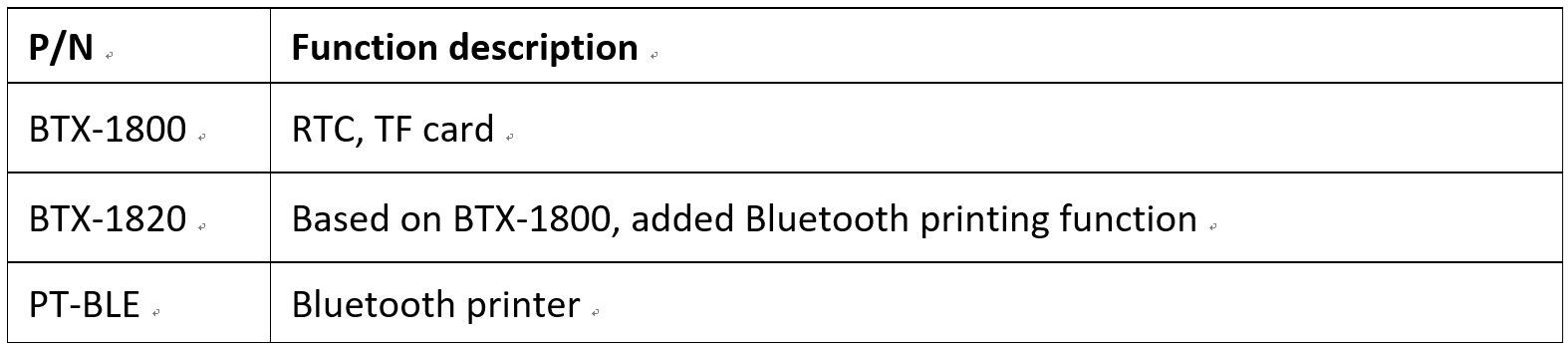

Ordering information:

Note:   Above models can all provide software customization, such as QC testing.
